Sandbox

Pigsty has a sandbox, which is a 4-node deployment with fixed IP addresses and other identifiers.

We will use this as a standard demonstration environment for learning and testing purposes.

Description

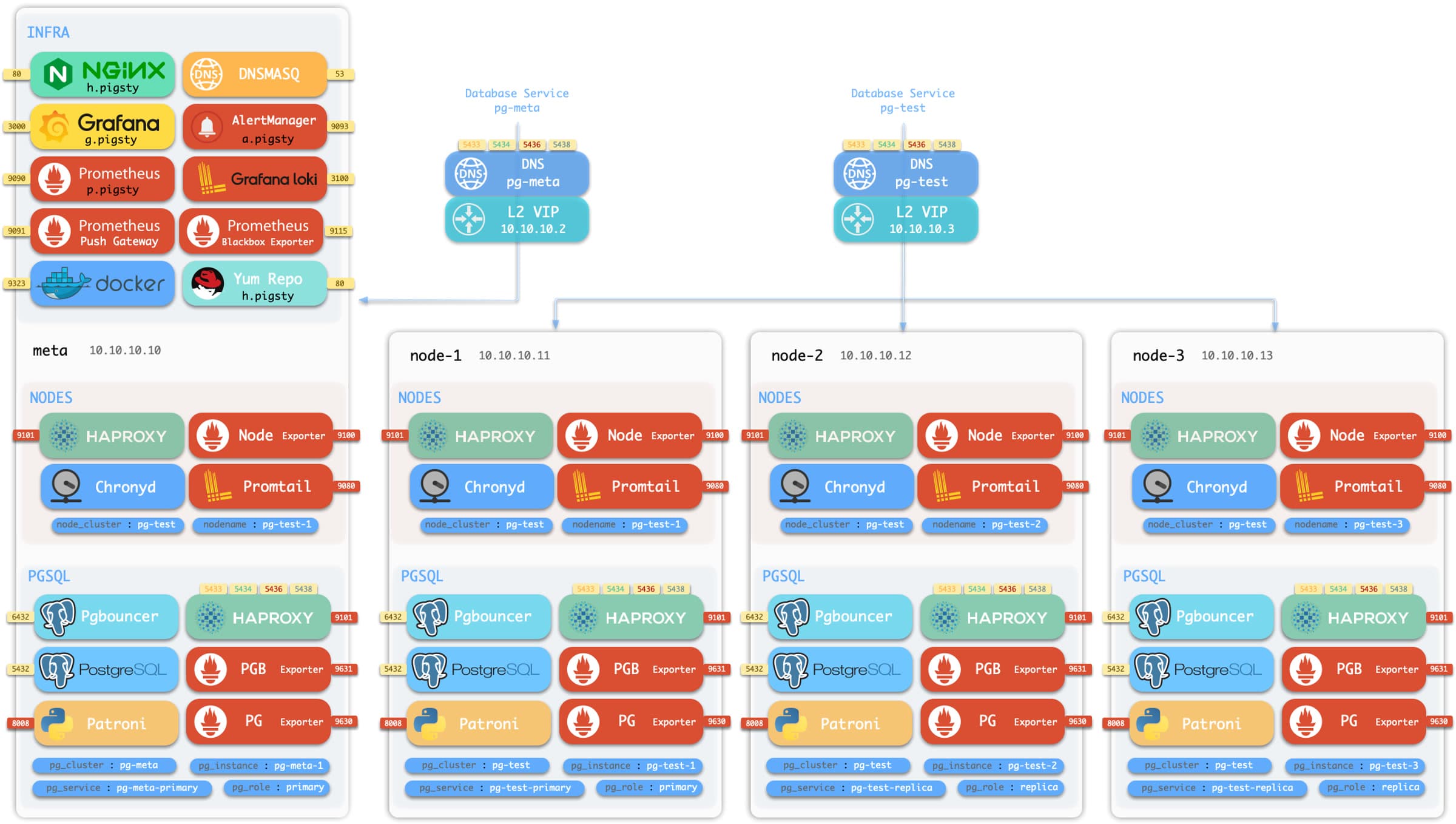

The sandbox consists of 4 nodes with fixed IP addresses and identities:

There’s a primary singleton PostgreSQL cluster: pg-meta on the meta node, which can be used standalone, and there's also an optional L2 VIP 10.10.10.2 and cluster DNS pg-meta bind to it.

10.10.10.10 meta pg-meta-1
10.10.10.2  pg-meta

There are three additional nodes in the sandbox, form a 3-instance PostgreSQL HA cluster pg-test. With an optional L2 VIP 10.10.10.3 and cluster DNS pg-test bind to the cluster leader.

10.10.10.11 node-1 pg-test-1
10.10.10.12 node-2 pg-test-2
10.10.10.13 node-3 pg-test-3
10.10.10.3  pg-test

There’s also a 1-node etcd cluster, and 1-node minio cluster on the meta node, too.

10.10.10.10 minio-1
10.10.10.10 etcd-1

Implementation

You can create a local sandbox with Vagrant, or a cloud sandbox with Terraform.

To utilize local vagrant templates:

make full9     # create 4-node sandbox with RockyLinux 9
make full12     # create 4-node sandbox with Debian 12
make full24     # create 4-node sandbox with Ubuntu 24.04

To utilize cloud terraform templates, use the spec/aliyun-full.tf as an example, Aliyun 4-node sandbox template for all distro & amd/arm.

make tu     # terraform up
make td     # terraform destroy
make tssh   # write ssh alias to ~/.ssh/pigsty_config
