High Availability

Enterprise-grade high availability with automatic failover and self-healing capabilities

Pigsty uses Patroni to achieve high availability for PostgreSQL, ensuring automatic failover.

pigsty-ha

Primary Failure RTO ≈ 30s, RPO < 1MB, Replica Failure RTO≈0 (reset current conn)

Overview

Pigsty's PostgreSQL cluster has battery-included high-availability powered by Patroni, Etcd, and HAProxy.

When you have two or more instances in the PostgreSQL cluster, you have the ability to self-heal from hardware failures without any further configuration — as long as any instance within the cluster survives, the cluster can serve its services. Clients simply need to connect to any node in the cluster to obtain full services without worrying about replication topology changes.

By default, the recovery time objective (RTO) for primary failure is approximately 30s ~ 60s, and the data recovery point objective (RPO) is < 1MB; for standby failure, RPO = 0, RTO ≈ 0 (instantaneous). In consistency-first mode, zero data loss during failover is guaranteed: RPO = 0. These metrics can be configured as needed based on your actual hardware conditions and reliability requirements.

Pigsty incorporates an HAProxy load balancer for automatic traffic switching, offering multiple access methods for clients such as DNS/VIP/LVS. Failovers and switchover are almost imperceptible to the business side except for sporadic interruptions, meaning applications do not need connection string modifications or restarts.

Key Metrics

RTO ~ 30s

Primary Failure

RPO < 1MB

Async Mode RPO

RTO ~ 0s

Replica Failure

RPO = 0

Sync Mode

What High Availability Solves

High availability addresses critical operational challenges:

Data Safety

Elevates availability: RPO ≈ 0, RTO < 30s for enhanced data protection

Rolling Maintenance

Seamless maintenance: Minimize maintenance windows for operational convenience

Hardware Failures

Self-healing: Automatic recovery from hardware failures without human intervention

Load Distribution

Read scaling: Distribute read-only queries across standby instances

Specific Benefits

Enhanced data safety: Improves the availability aspect of data safety CIA to a new height
Rolling maintenance capabilities: Enables seamless maintenance with minimal downtime
Hardware failure recovery: Self-healing from hardware failures without human intervention
Load sharing: Read-only requests can be distributed across standby instances

Costs of High Availability

Implementing HA introduces certain trade-offs and requirements:

Infrastructure Requirements: HA requires at least 3 nodes and additional infrastructure dependencies.

Resource Requirements

Minimum cluster size: At least 3 nodes for proper consensus
Additional infrastructure: Requires consensus store (Etcd) and load balancer
Resource overhead: Additional CPU, memory, and network resources
Operational complexity: Increased monitoring and management requirements

Limitations

High availability cannot prevent:

Human errors and operational mistakes
Software defects causing data corruption
Logical data deletion or corruption

For these scenarios, additional recovery strategies are needed:

Delayed clusters for protection against logical corruption
Point-in-time recovery for fine-grained data restoration
Regular backups for disaster recovery scenarios

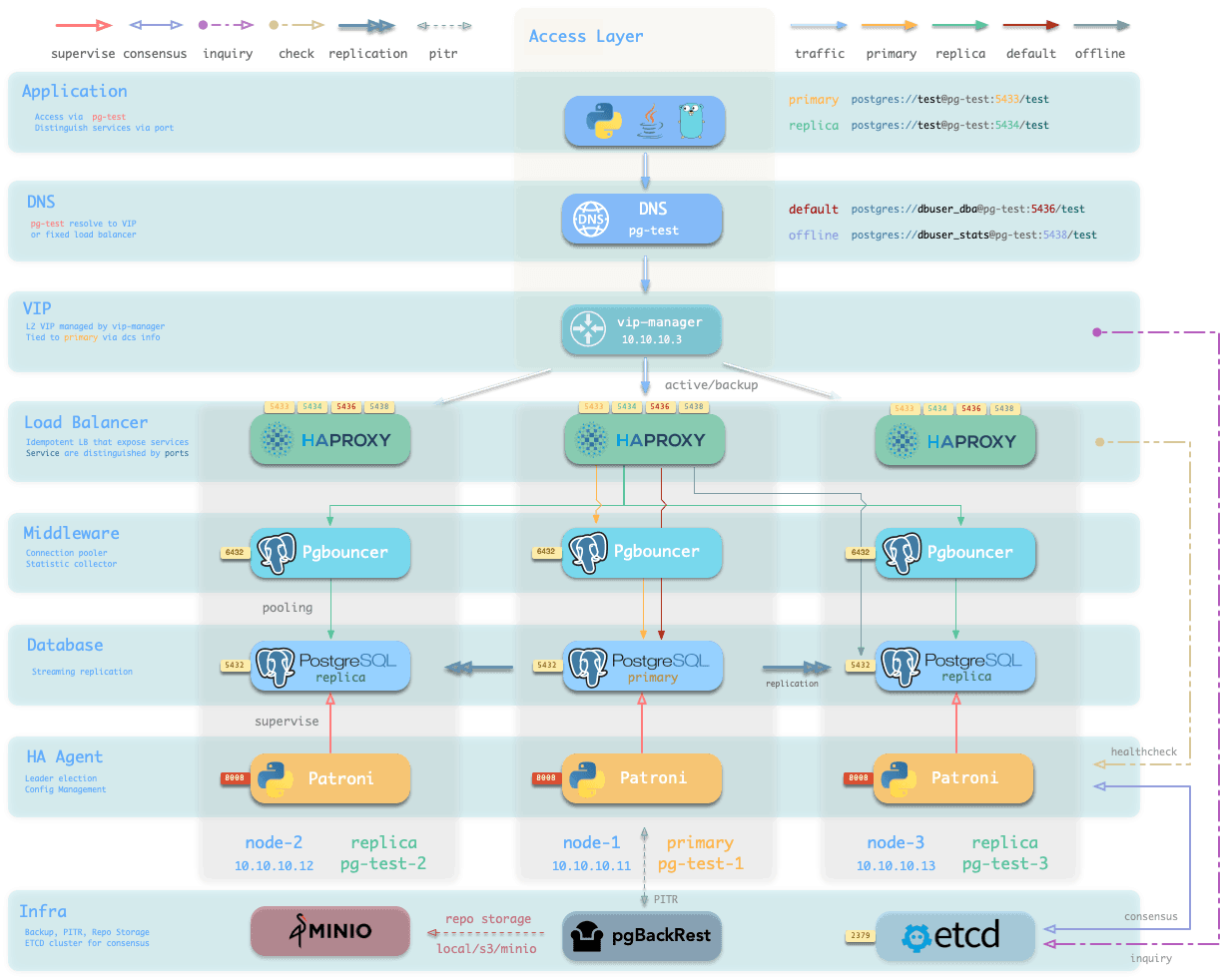

Architecture

Pigsty's HA architecture leverages a multi-component design that eliminates single points of failure:

Patroni

Cluster Management: Orchestrates PostgreSQL processes and handles automatic failover

Etcd

Consensus Store: Provides distributed configuration and leader election

HAProxy

Load Balancer: Routes traffic and provides service discovery

VIP Manager

Virtual IP: Optional Layer 2 VIP binding for seamless connectivity

Component Roles

Cluster Orchestrator

Manages PostgreSQL server processes
Handles automatic failover and switchover
Monitors cluster health and topology
Configures streaming replication
Provides REST API for cluster management

# Patroni configuration example
patron:
  name: pg-test-1
  scope: pg-test
  bootstrap:
    dcs:
      ttl: 30
      loop_wait: 10
      retry_timeout: 30

Distributed Configuration Store

Stores cluster configuration and state
Provides leader election mechanism
Ensures consistent view across all nodes
Handles network partitions gracefully
Maintains cluster membership information

# Etcd cluster configuration
etcd_cluster: etcd
etcd_safeguard: false
etcd_clean: true

Traffic Router and Load Balancer

Routes read/write traffic to appropriate nodes
Provides health checking for database instances
Offers multiple service endpoints
Handles connection pooling and load distribution
Supports SSL termination and connection limits

# HAProxy service endpoints
primary:5433    # Read-write traffic to primary
replica:5434    # Read-only traffic to replicas
default:5436    # Failover-aware connection
offline:5438    # Dedicated offline queries

Virtual IP Management

Manages Layer 2 Virtual IP addresses
Provides seamless client connectivity
Handles VIP migration during failover
Supports multiple VIP interfaces
Optional component for simplified client access

# VIP configuration
vip_enabled: true
vip_address: 10.10.10.99/24
vip_interface: eth0

Implementation

Pigsty's HA implementation follows proven patterns for PostgreSQL clustering:

Replication Architecture

Streaming Replication

PostgreSQL uses built-in streaming replication for data synchronization between primary and standby nodes.

Consensus-Based Leadership

Patroni uses Etcd for distributed consensus to elect cluster leader and manage topology changes.

Automatic Failover

When primary fails, Patroni automatically promotes the most up-to-date standby to become the new primary.

Traffic Rerouting

HAProxy detects topology changes and automatically routes traffic to the new primary instance.

Failure Scenarios

Primary Node Failure Process

Detection: Patroni detects primary node failure (15-30 seconds)
Leader Election: Etcd coordinates new leader selection
Promotion: Most up-to-date standby is promoted to primary
Reconfiguration: Remaining standbys reconfigure to new primary
Traffic Switch: HAProxy redirects traffic to new primary

Write Service Interruption: 15-30 seconds during failover process

Standby Node Failure Process

Detection: Immediate detection of standby failure
Traffic Rerouting: HAProxy removes failed node from pool
Service Continuity: Read queries continue on remaining standbys
Automatic Recovery: Node rejoins cluster when restored

Minimal Impact: Read-only queries experience brief interruption only

Network Partition Handling

Split-Brain Prevention: Etcd consensus prevents multiple primaries
Quorum Requirements: Majority of nodes required for operations
Graceful Degradation: Read-only mode in minority partitions
Automatic Recovery: Normal operations resume when partition heals

Quorum Dependency: Requires majority of consensus nodes to remain operational

Trade-Offs

Pigsty provides configurable parameters to balance between recovery speed and data consistency:

Recovery Time Objective (RTO)

The pg_rto parameter controls failover timing and sensitivity:

# RTO Configuration
pg_rto: 30  # Default: 30 seconds

Lower RTO values:

✅ Faster failover response
✅ Reduced service interruption
❌ Higher risk of false positives
❌ May cause unnecessary failovers

Higher RTO values:

✅ More stable, fewer false alarms
✅ Better tolerance for network hiccups
❌ Longer service interruption
❌ Delayed response to real failures

Recovery Point Objective (RPO)

The pg_rpo parameter limits potential data loss during failover:

# RPO Configuration
pg_rpo: 1048576  # Default: 1MB

Lower RPO values:

✅ Better data consistency
✅ Minimal data loss risk
❌ May delay failover
❌ Could impact availability

Higher RPO values:

✅ Faster failover process
✅ Better availability
❌ Potential for more data loss
❌ Consistency trade-offs

Configuration Examples

# Zero data loss configuration
synchronous_mode: true
synchronous_mode_strict: true
pg_rpo: 0
pg_rto: 60
synchronous_standby_names: 'ANY 1 (*)'

Use Case: Financial systems, critical transactional data

# Fast failover configuration
synchronous_mode: false
pg_rpo: 16777216  # 16MB
pg_rto: 15
max_replication_slots: 16

Use Case: High-traffic applications, read-heavy workloads

# Default balanced configuration
synchronous_mode: false
pg_rpo: 1048576   # 1MB
pg_rto: 30
max_replication_slots: 8

Use Case: Most production environments

Network Quality Impact

Network conditions significantly affect HA behavior:

High-quality networks: Can use lower RTO values safely
Unstable networks: Require higher RTO to prevent false positives
WAN deployments: Need careful tuning of timeout parameters
Local networks: Can optimize for faster failover

Monitoring and Observability

Pigsty provides comprehensive monitoring for HA cluster health:

Key Metrics

Cluster State

Monitor cluster topology, leader status, and member health

Replication Lag

Track replication lag and sync status across all replicas

Failover Events

Log and analyze failover events and their impact

Performance

Monitor query performance and connection health

Dashboard Integration

Pigsty includes pre-built Grafana dashboards for HA monitoring:

Cluster Overview: Real-time cluster topology and health
Replication Monitoring: Lag metrics and sync status
Failover Analysis: Historical failover events and timing
Performance Metrics: Query performance during normal and failover scenarios

Best Practices

Deployment Recommendations

Anti-Affinity: Deploy cluster nodes across different physical hosts, racks, or availability zones.

Hardware diversity: Use different hardware configurations to avoid common failure modes
Network redundancy: Ensure multiple network paths between cluster nodes
Storage considerations: Use local storage for best performance, shared storage for specific use cases
Monitoring setup: Implement comprehensive monitoring before going to production

Operational Guidelines

Regular testing: Perform controlled failover tests in non-production environments
Capacity planning: Size cluster nodes appropriately for failover scenarios
Backup strategy: Maintain regular backups independent of HA setup
Documentation: Keep runbooks updated for emergency procedures

Common Pitfalls

Avoid These Common Mistakes:

Insufficient network bandwidth between nodes
Inadequate monitoring of replication lag
Not testing failover procedures regularly
Incorrect firewall configurations

Summary

Pigsty's high availability solution provides:

Automatic failover with sub-minute RTO
Configurable consistency with RPO control
Self-healing capabilities for hardware failures
Load balancing for read scaling
Minimal operational overhead with automated management

The combination of Patroni, Etcd, and HAProxy creates a robust, production-ready HA solution that handles the majority of failure scenarios automatically while providing the flexibility to tune behavior based on specific requirements.

High availability is not just about technology—it's about building resilient systems that your business can depend on.
